3d Gesture Sensor (Mini)
SEN0202
₱1528.00₱993.00
Out of stock
Introduction
The DFRobot 3D gesture sensor is an interactive sensor that integrates 3D gesture recognition and motion tracking. This sensor can be used to detect clockwise/counterclockwise rotation and movement directions. It is designed based on Microchip patent GestIC® technology with electric near field sensing technology, including 3D gesture input sensing system and advanced 3D signal processing unit. And its effective detection range is 0-10cm. This sensor can be applied to various interactive art projects. Just think about it, with a wave of your hands, the lamp turns on, music turns up. Everything is at your fingertips!
Specification
Operating Voltage: 3.3~5 V
Interface Type: I2C
I2C Address: 0×42
Gesture Detection Range: 5 cm
Distance Induction Range: 10 cm
Dimensions : 72 × 54 mm / 2.83 × 2.12"
Operating Temperature: - 20 °C ~ + 85 °C
Spatial Resolution: 150 dpi

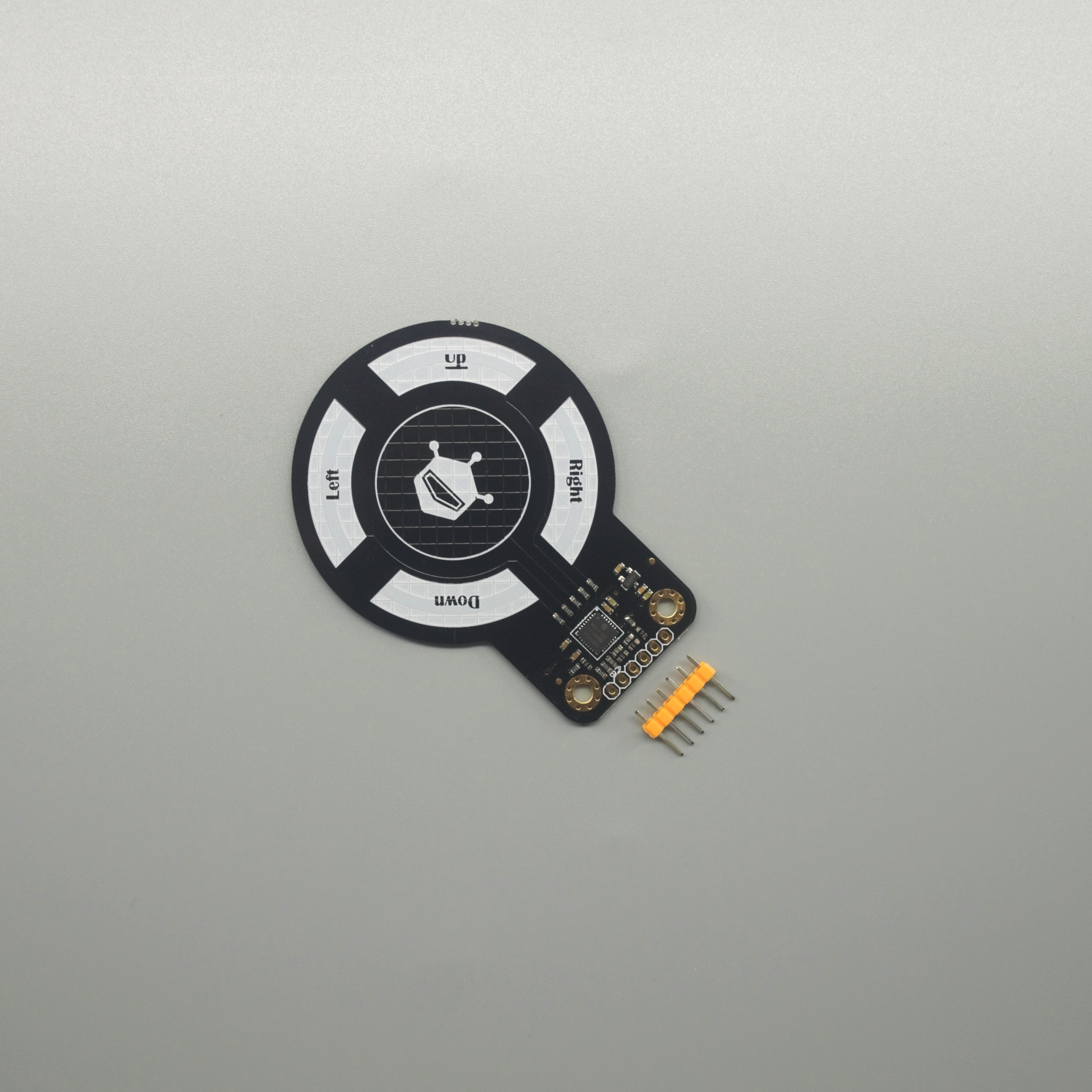

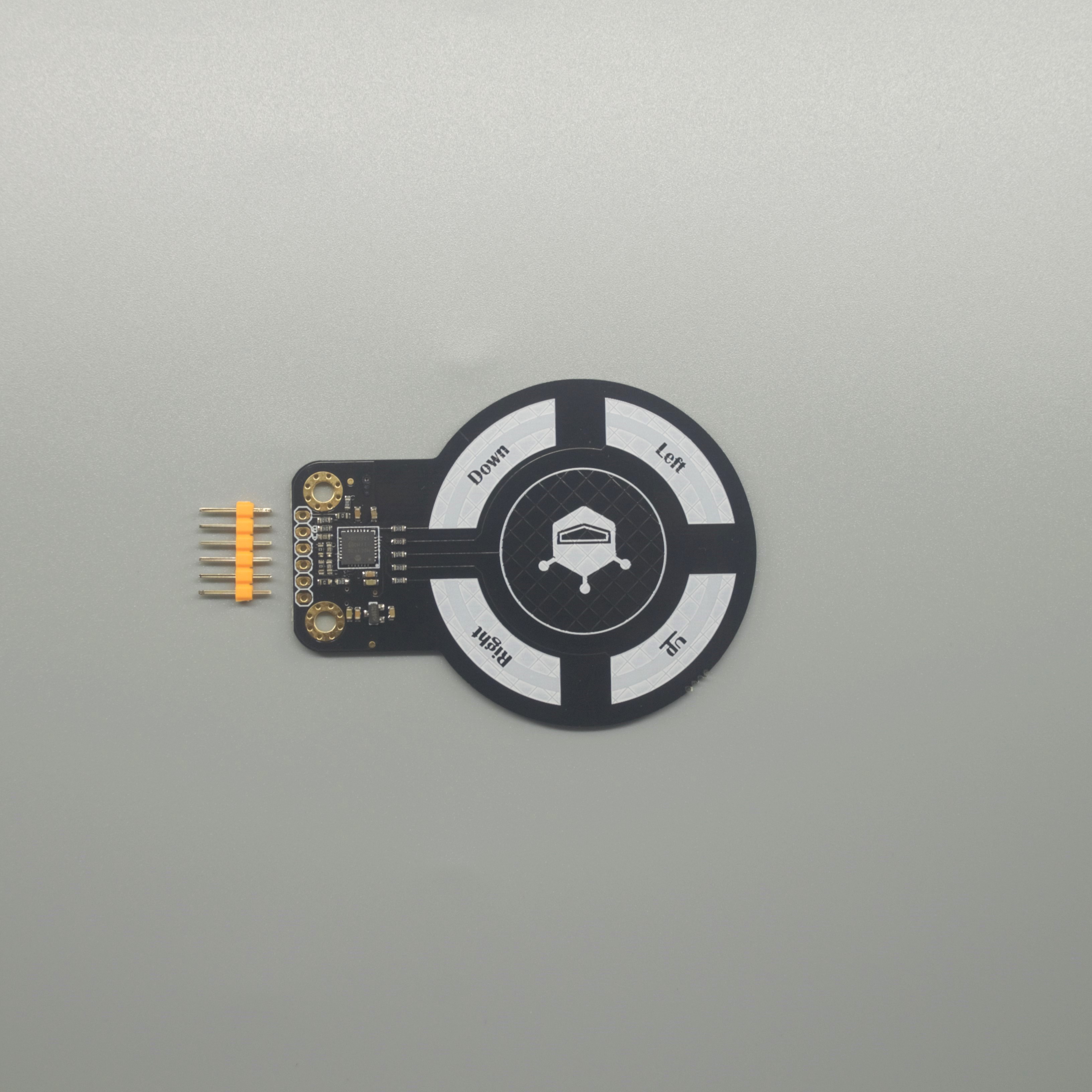

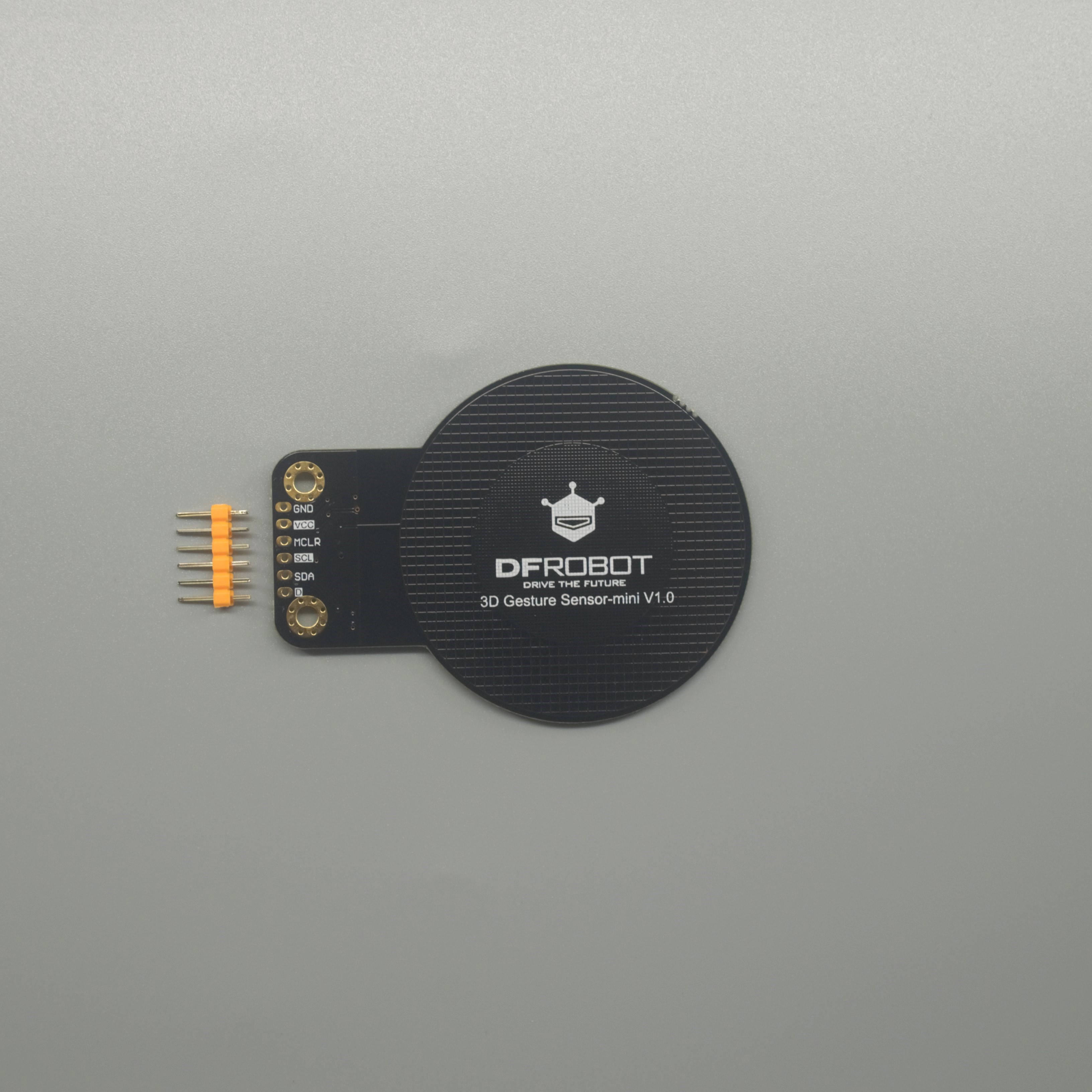

Board Overview
Num | Label | Description |
|---|---|---|
1 | GND | DND |
2 | VCC | VCC(5 V) |
3 | MCLR | Sensor Reset(Low Level On) |
4 | SCL | I2C clock signal |
5 | SDA | I2C data signal |
6 | D | Digital IO |
Sensor address: 0×42 |
