CrowBot BOLT - Open Source Programmable Robot Car
CRB00157C
₱1852.00
Out of stock
Description
CrowBot BOLT is an open source smart programming robot car powered by an ESP32 chip. It has a wealth of sensors(such as a light sensor, ultrasonic sensor, and line Tracking Sensor), comes with Wifi and Bluetooth-compatible functions, and can meet a variety of programming environments like Letscode, Micropython, and Arduino. This programming robot kit can quickly realize functions such as light tracking, line tracking, obstacle avoidance, remote control, and light show. As an entry-level STEAM educational robot car toy, the cool and cute BOLT makes robot programming learning and teaching easy and fun. It comes with 16 lessons in three languages (Letscode, Arduino, MicroPython), provides rich graphical programming, and allows programming beginners to learn to program in the fun of creativity. It has reserved 2 expansion interfaces, which can be expanded and used with 150+ kinds of Crowtail modules. Unlimited creativity, waiting for you to discover!
This is an open source robot car, all design files can be downloaded below.
CrowBot's ultrasonic sensors can not only automatically avoid obstacles, but also emit colorful RGB lights. The unique design gives it more creative possibilities.
It can use an infrared remote or a Bluetooth-compatible joystick to control. These two methods have flexible control and can change direction at any time.
Button 1 (Ultrasonic Obstacle Avoidance Robot) When the distance between the BOLT and the obstacle in front is less than 30cm, the car will turn right; otherwise, it will always keep moving forward. And at the same time, the sensor has built-in RGB lights, which can emit colorful light sources. | Button 2 （Line tracking robot） Press the button 2, the car starts to follow the black line on the map, turn right when it deviates to the left, turn left when it deviates to the right, and back up when it exceeds the black line. |
Button 3 （Light chasing robot） When use the flashlight to shine in front of the BOLT car, it can distinguish the moving direction according to the light intensity to realize the effect of the light-chasing robot.
| Button 4 (Music playing robot) Press the button 4, the 4 onboard RGB_LEDs of the BOLT randomly display different colors and present the effect of flowing water lights. Apart from these, it can also play music at the same time. |
CrowBot BOLT | ESP32 chip-driven open-source intelligent programming car;
Supports multiple languages, rich tutorials |16 courses in three languages (Letscode, Arduino, Micropython), fast learning, interesting experiments;
Wide compatibility | Compatible with Arduino and MicroPython development environments, using Letscode graphical programming, simple and easy to use;
Strong scalability | It has a variety of interfaces and can be expanded with the Crowtail module.
AI Support | Support AI project development (Use with GRC AI Robot Control)
Feature
16 lessons in three languages（Letscode, Arduino, Micropython）, fast learning and fun experiments
Compatible with Arduino, MicroPython development environment, using Letscode graphical programming, easy to use
Strong scalability, with a variety of interfaces, can be expanded and used with Crowtail modules
A variety of remote control modes, you can use the infrared remote control and joystick to control the car
Specification

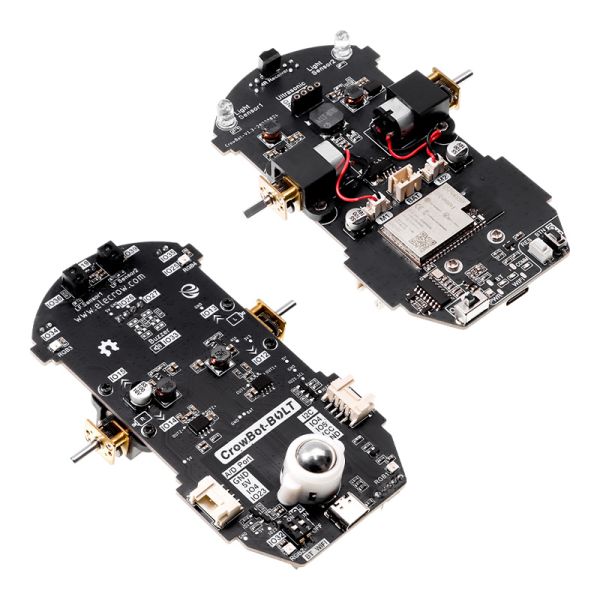

Processor | Esp32-Wrover-b（8MB） |
Programmatically | Letscode, Arduino, Micropython |
Control method | Bluetooth-compatible Remote Control/Infrared Remote Control |

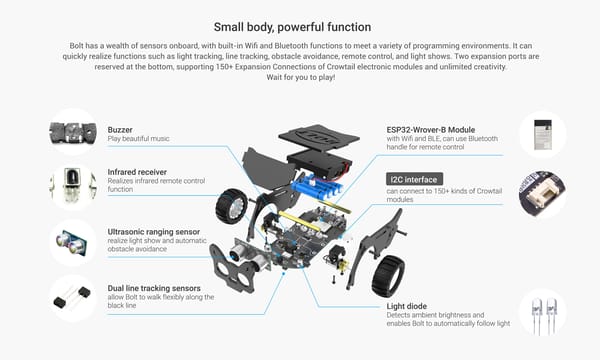

Input | Button, Light sensor, Infrared Receiving Module, Ultrasonic Sensor, Line Tracking Sensor |
Output | Buzzer, Programmable RGB Light, Motor |
Wifi&Bluetooth-compatible | Yes |
Light sensor | Can realize the function of chasing light or avoiding light |
Ultrasonic Sensor | When an obstacle is detected, the driving route of the car can be corrected to avoid the obstacle |
Line Tracking Sensor | Can make the car move along the dark/black lines, intelligently judge and correct the driving path |
Buzzer | Can make the car sound/whistle, bringing a more direct sensory experience |
Programmable RGB Light | Through programming, it can show colorful lights in different scenes |
Infrared receiver | Receive infrared remote control signals to realize remote control |
Interface | Type c x1, I2C port x1, A/D port x1 |
Motor type | GA12-N20 Micro DC Gear Motor |
Work Temperature | -10℃~+55℃ |
Power supply | 1.5V dry batteries x4（Battery not included） |
Battery life | 1.5 hour |
Dimension | 128*92*64mm |
Weight | 900g |
Package List
1x Chassis
1x Ultrasonic Sensor
1xBattery Holder
2x Wheels
4x M3*8mm Screws
2x M3*5mm Copper Column
2x Side Acrylic Plates
1x Front Acrylic Plates
1x Screwdriver
2x 4 Pin Crowtail Cable
1x Type C Cable x1
1x Infrared remote control
1x Instructions & Line Track Map
