DFRduino Pro Mini V1.3 - Arduino Pro Mini Compatible - 8M3.3V328
DFR0132
₱525.00₱210.00
Out of stock
Introduction

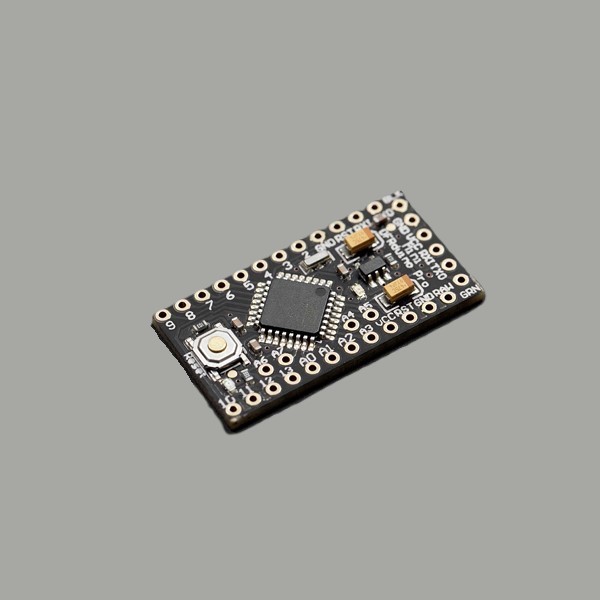

The 3.3V DFduino Pro Mini 8Mhz(Arduino Pro Mini Compatible) is a microcontroller board based on the ATmega328.It is a 3.3V DFduino running the 8MHz bootloader (select 'Arduino Duemilanove w/ 328' within the Arduino software).
It is an advanced version of the official Arduino Pro Mini. The DFRduino Pro mini has 8 analog inputs compared with the official 6. The rest bits are exactly the same.

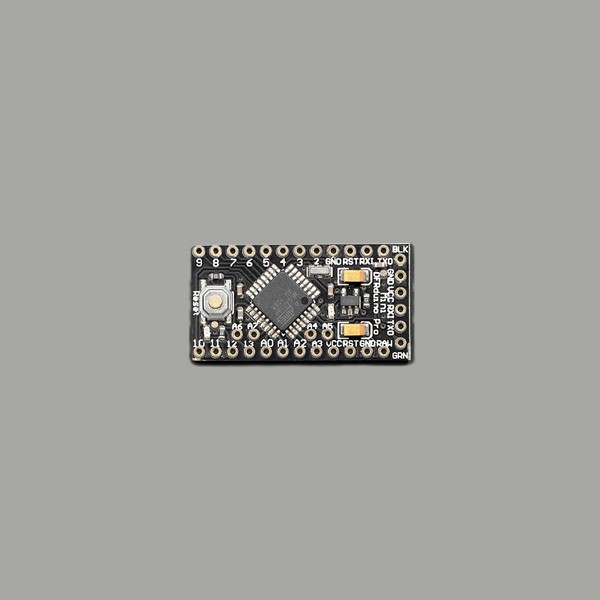

It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or DFRobot breakout board to provide USB power and communication to the board.
The DFRduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.
We recommend that you choose one of the following items to program and supply power for your Mini pro board.
1. FTDI Basic Breakout 3.3/5V (Arduino Compatible)
2. USB Serial Light Adapter (Arduino Compatible)
Note: Compared with DFduino Pro Mini 8Mhz(Arduino Pro Mini Compatible), this V1.3 one reverses pins of the programming interface.
Specification
DC input 3.3V up to 8V(power supply from the RAW pin)
DC input 3.3v(from VCC pin)
Bootloader: Arduino Pro/Pro Mini (3.3V, 8Mhz) w/ Atmega328
3.3V regulator
Max 150mA output
ATmega328 running at 8MHz with external resonator (0.5% tolerance)
Low-voltage board needs no interfacing circuitry to popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
USB connection off board
Supports auto-reset
Over-current protected
Reverse polarity protected
Onboard Power and Status LEDs
Size:0.7x1.3" (18x33mm)
Environment Friendly: Rohs Compliance
Documents
Package List

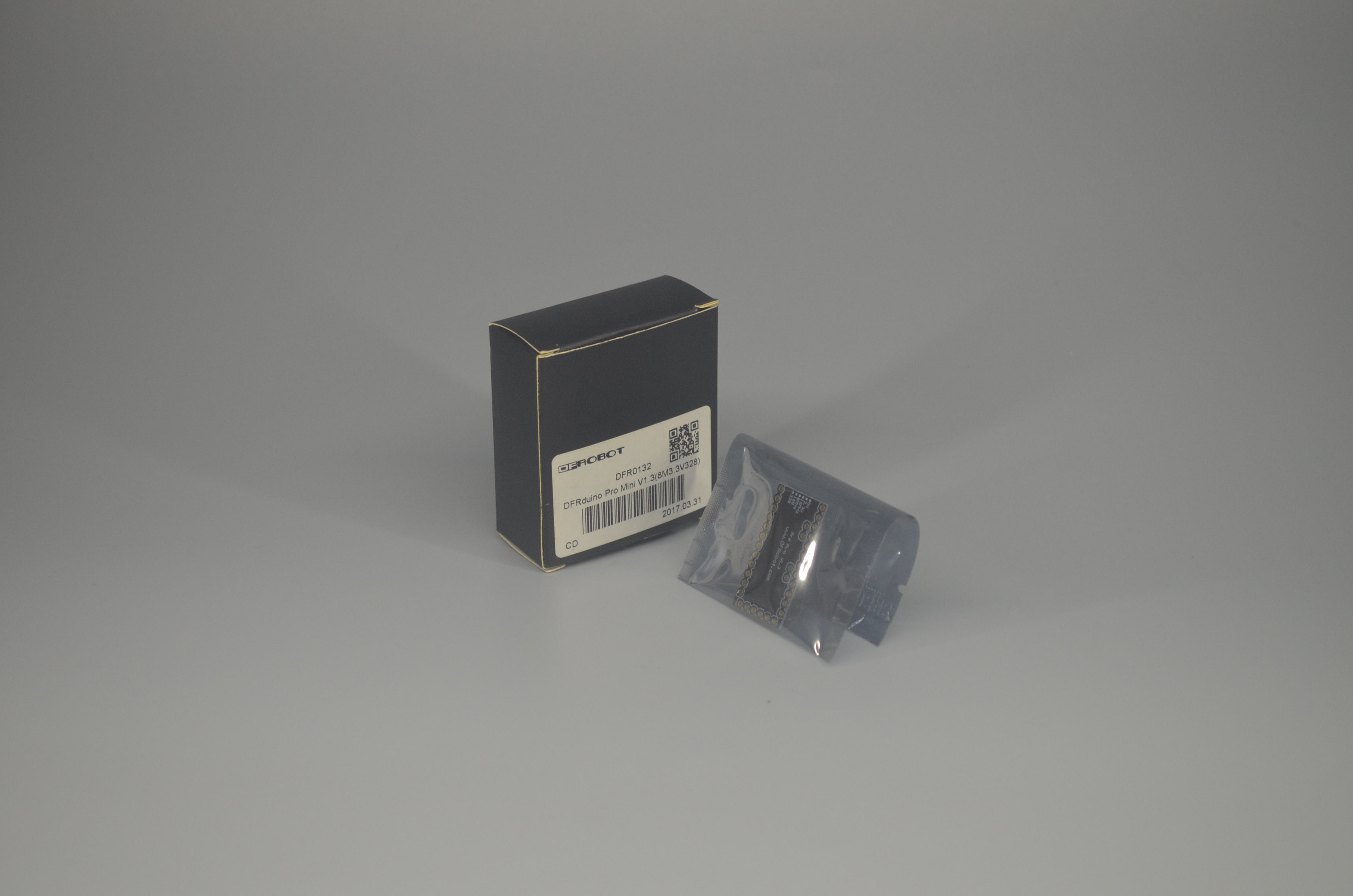

DFRduino Pro Mini V1.3(8M3.3V328) x1
