FireBeetle Covers-Proto Board
DFR0481
₱207.00₱155.00
Out of stock
Introduction
DFRobot FireBeetle series is the low-power consumption micro-controller intentionally designed for Internet of Things (IoT). The series micro-controllers aims at IoT node of low-power consumption, attending to build the IoT hardware platform quickly and conveniently. There are three types of FireBeetle, containing Boards (main control), Covers (expansion boards) and related Accessories.

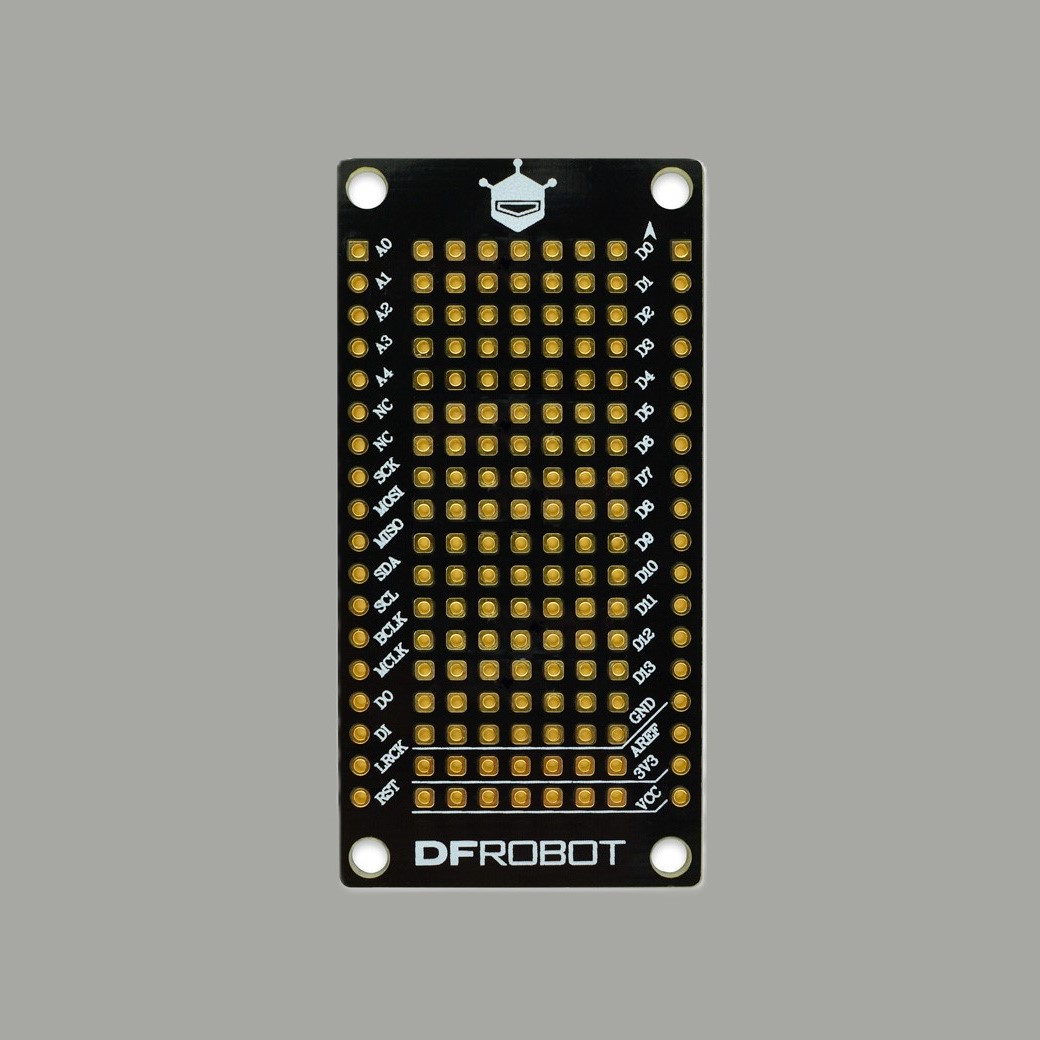

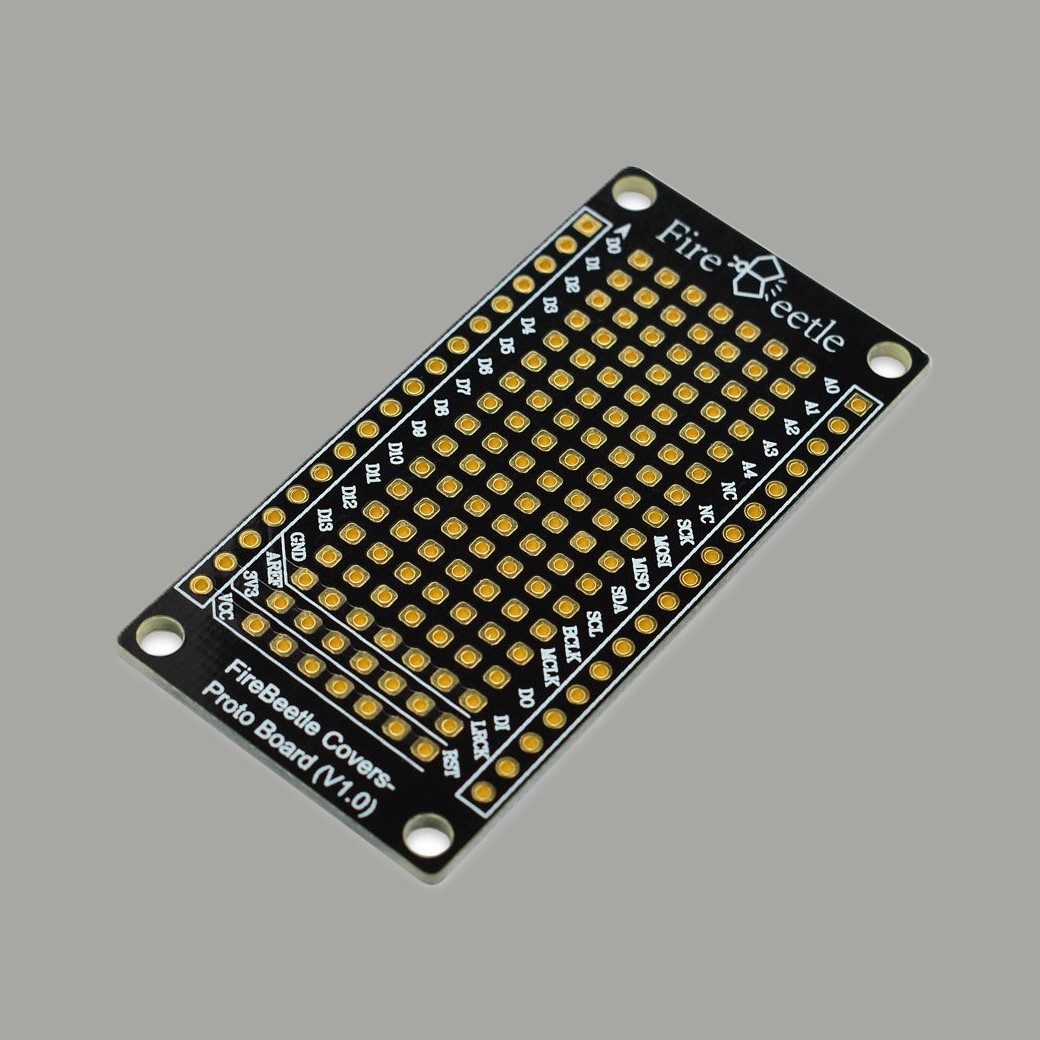

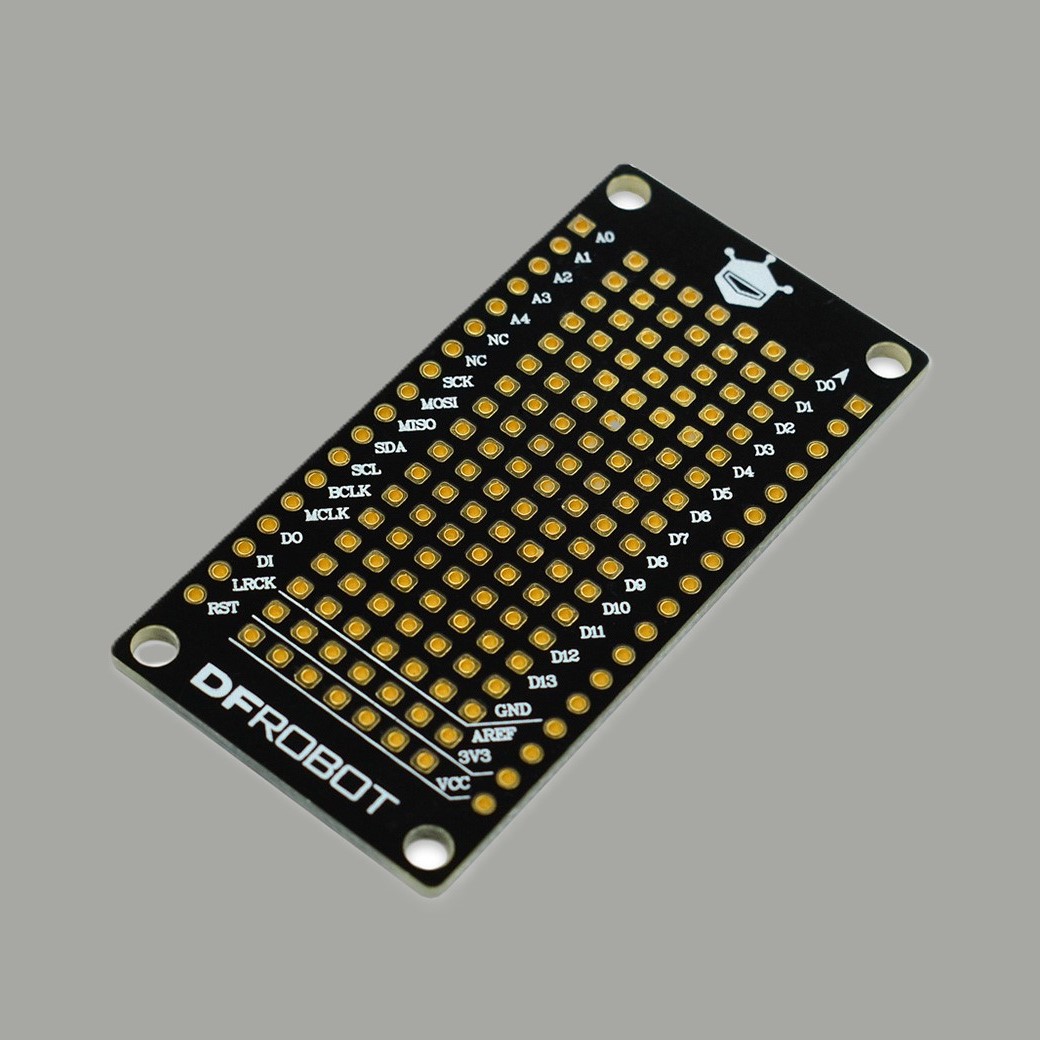

Proto Board is compatible with products of FireBeetle series. There are 14×7 general 2.54mm solder holes in the board of standard spacing. The prototyping boards connect to one master board with VCC, 3.3V and GND soldering pads. These features of Proto Board contribute to it an ideal vehicle for soldering any electronic component. Moreover, the ports compatible with other projects of FireBeetle makes it the best choice for overlay circuit prototypes.
FireBeetle Connection
Project 1. How to Make a Smart Colorful Light
Today we will teach you How to Make a Smart Colorful Light Based On FireBeetle ESP32 IOT Microcontroller.
Hardware in need:
NPN Triode×1
FireBeetle ESP32 IOT Microcontroller (Supports Wi-Fi & Bluetooth) ×1
Rotary Encoder EC11J×1
BME280×1
Project 2. How To Make a Step-Counter By Use Of The FireBeetle Board-ESP32
The instrument not just can record steps (and calories) at real time, but show time. What is special is that the format of showing is pointer.
Hardware in need:
Features
Compatible with products in the DFRobot FireBeetle Series, plug and play
Cost-Effective
Small size, convenient to install
Specification
14×7 general 2.54mm soldering pad
Dimension: 29.00×58.00mm/ 1.41×2.28 inches
Weight: 18 g
Documents

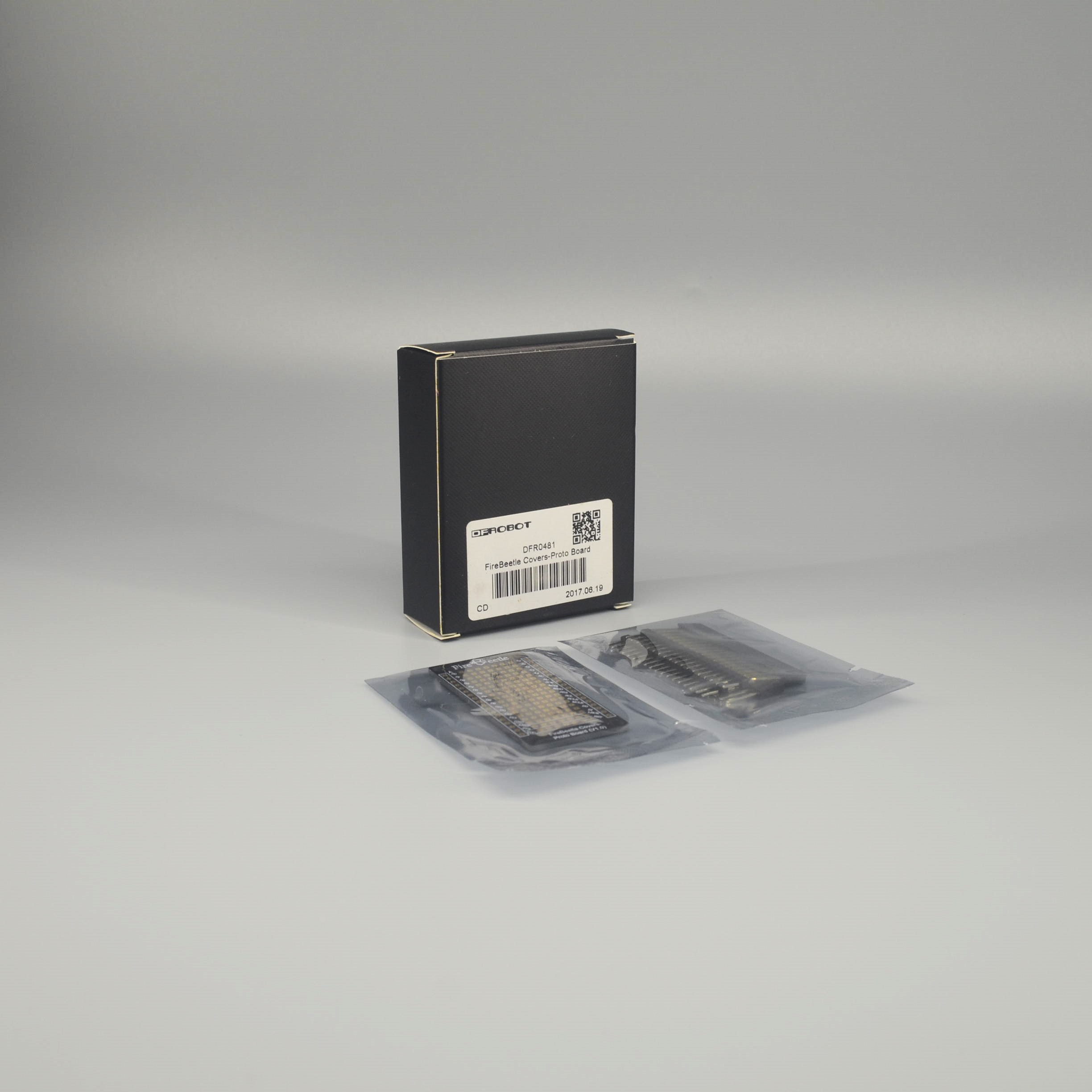

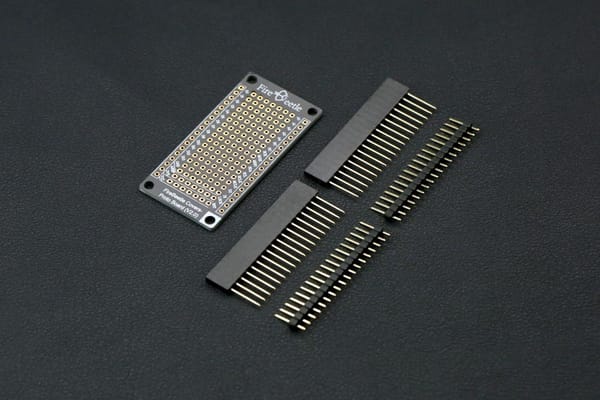

Packing List
FireBeetle Covers-Proto Board x1
18 pin-2.54mm pin x4
18 pin-2.54mm long pin header x4
