FireBeetleCovers 24x8 LED Matrix- Green
DFR0468
₱885.00₱443.00
Out of stock
Introduction
DFRobot FireBeetle is a low-power consumption micro-controller intentionally designed for Internet of Things (IoT). This series micro-controllers aims at IoT node of low-power consumption, attending to build the IoT hardware platform quickly and conveniently. There are three types of FireBeetle, containing Boards (main control), Covers (expansion boards) and related Accessories.
This 24×8 LED Matrix display is special designed for FireBeetle series. It supports low-power consumption mode and scrolling display. With HT1632C high performance LED driver chip, every led has independent register, which makes it easy to drive separately. It integrates a 256KHz RC clock, only 5uA under low-power mode, support 16 scale PWM brightness adjustment. This product also works with the other Arduino micrcontroller like Arduino UNO.
Specification
Operating Voltage: 3.3~5V
LED Color: Green
Drive Chip: HT1632C
Working Current: 6~100mA
Low-power Consumption: 5uA
RC clock: 256KHz
Chip Select (CS): D2, D3, D4, D5 selectable
Serial Data Communication
Support Arduino Library
Support Scrolling display
Interface mode: FireBeetle Series Compatible
Operating Temperature: -10℃~+85℃
Dimension: 24 × 58(mm)/0.94 x 2.28(inches)
Weight: 26g
Documents

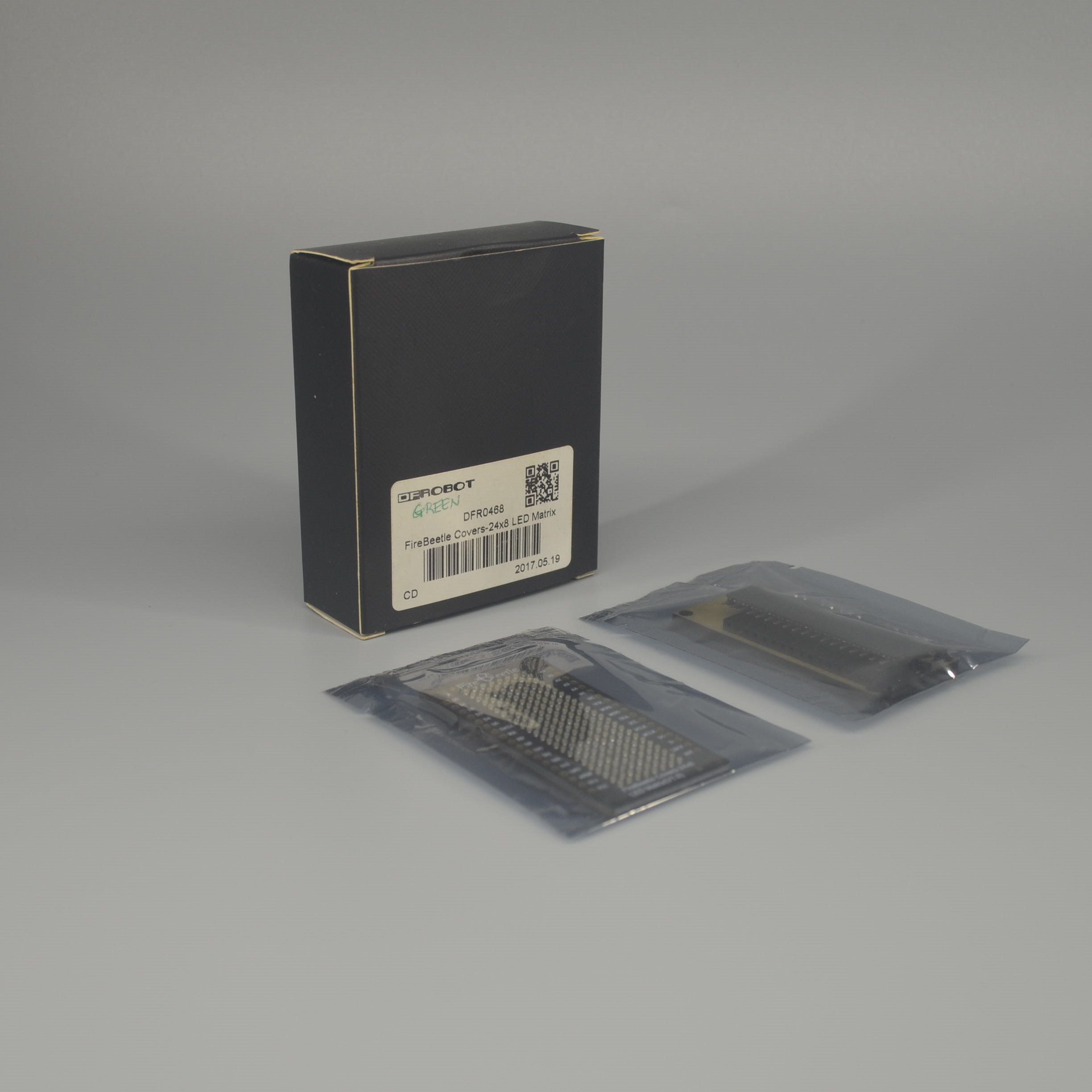

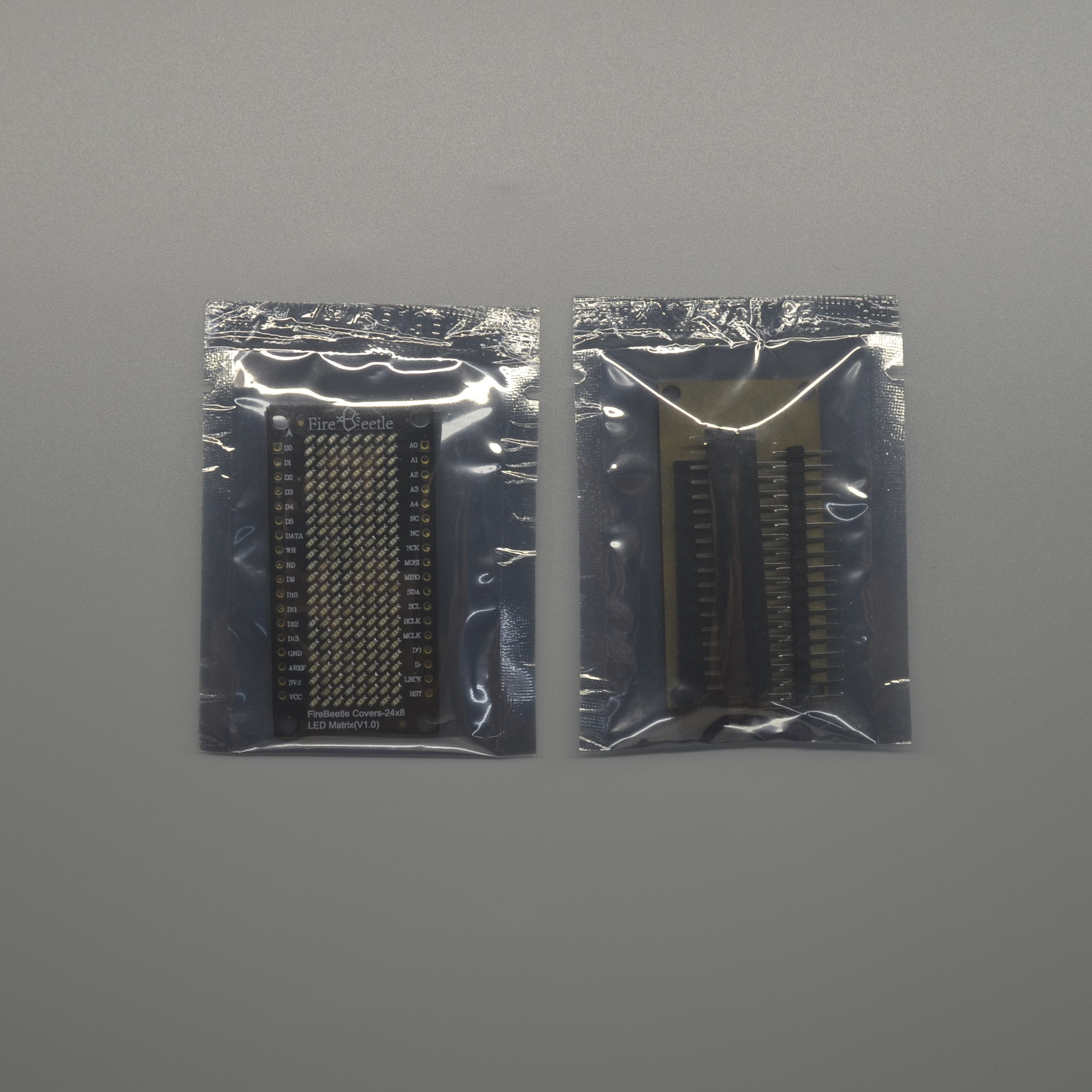

Shipping List
FireBeetle Covers-24x8 LED Matrix (Green) x1
18pin-2.54mm Pin Header x2
18pin-2.54mm Female Pin Header x2
