Gravity: Analog Grayscale Sensor For Arduino
DFR0022
₱153.00₱115.00
Out of stock
Introduction
This gray scale sensor is able to measure the intensity of light from black to white. A gray scale is also known as black-and-white, are composed exclusively of shades of gray, varying from black at the weakest intensity to white at the strongest.
Gray Scale

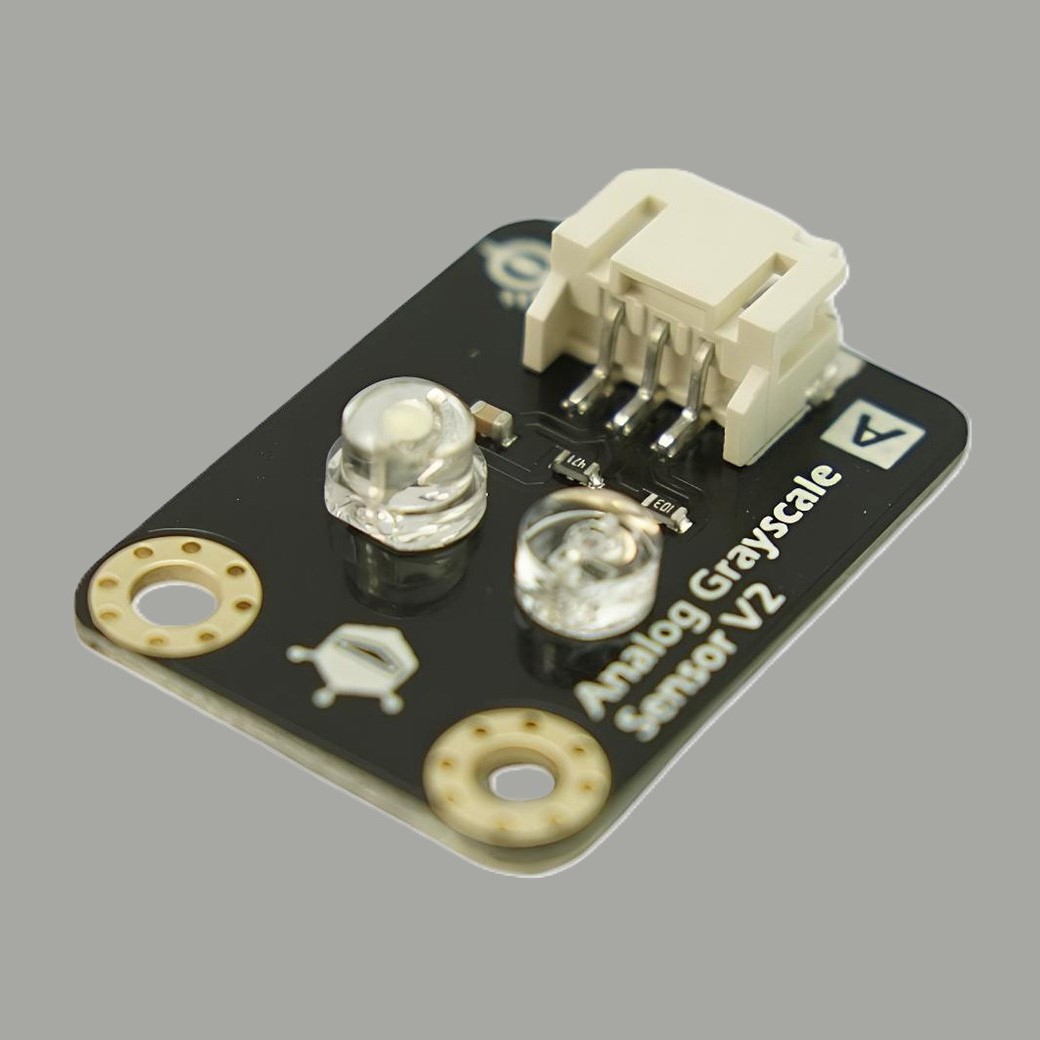

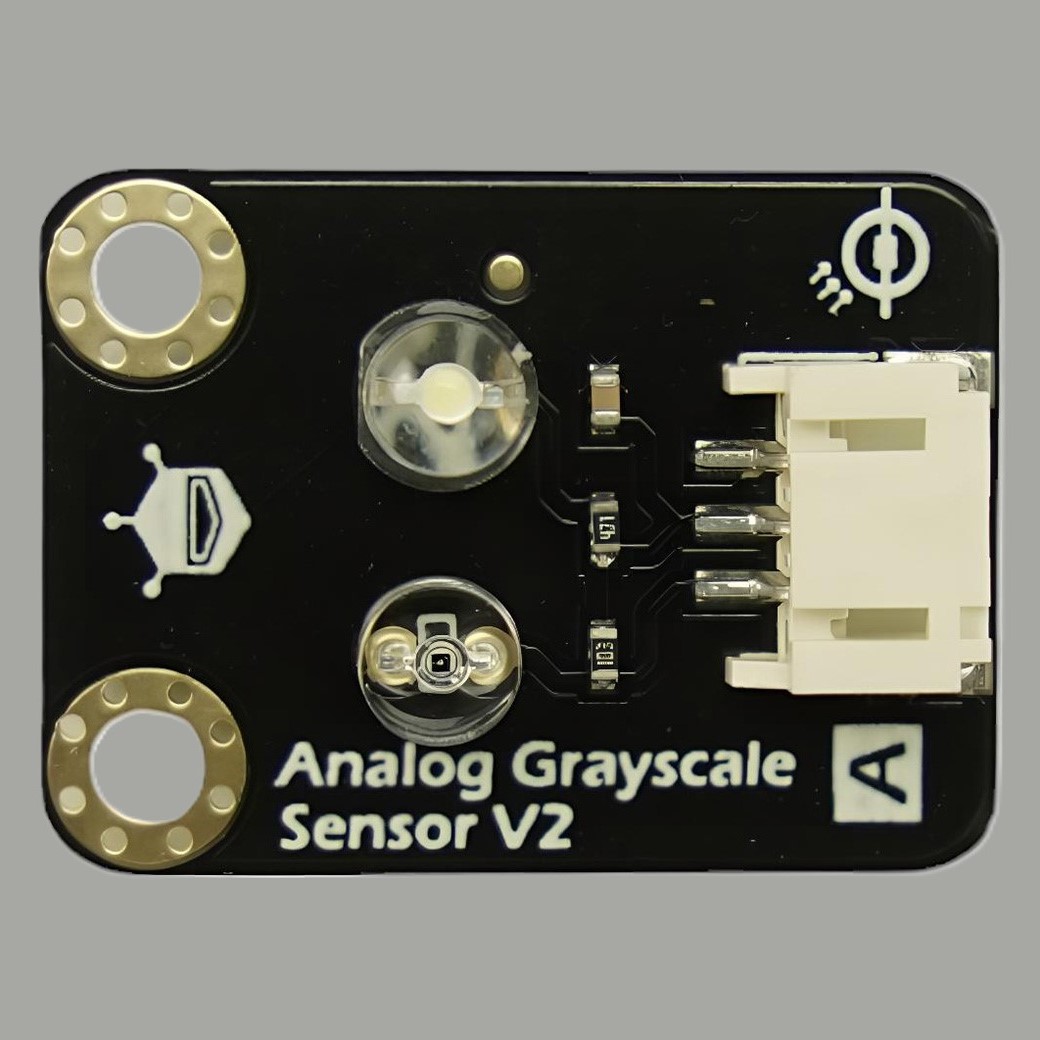

The gray scale sensor for arduino is a composition of a photocell (light-controlled variable resistor) and a integrated white LED on board aiming just front of the sensor. It's connected LED will let you compare and provide some reflective feedback to analyse gray scale light ranges. Different colors will apply but only gray scale values will be outputted. This new design includes a much better quality connector that increases life span of the sensor, better voltage range and easy to use.
This is a common sensor for automatic lamps that are turned on when light is not enough. For example, with lack of sun light the value will be low enough and this value can be used to trigger a relay to enable a lamp and shutdown the lamp when the sunlight is back. Other light sensitive devices could be used for simple data transmission, like Morse code with a flash light. And can also be used as a line following (tracking ) sensor.
Features
Wide voltage range from 3.3V to 5V
Standard assembling struct (two 3mm holes with multiple of 5cm as interval)
Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
Icons to simplely illustrate sensor function
High quality connector
Immersion gold surface
Specification
Supply Voltage: 3.3V to 5V
Interface: Analog
Size:22x30mm (0.87 x 1.18 in)
Documents

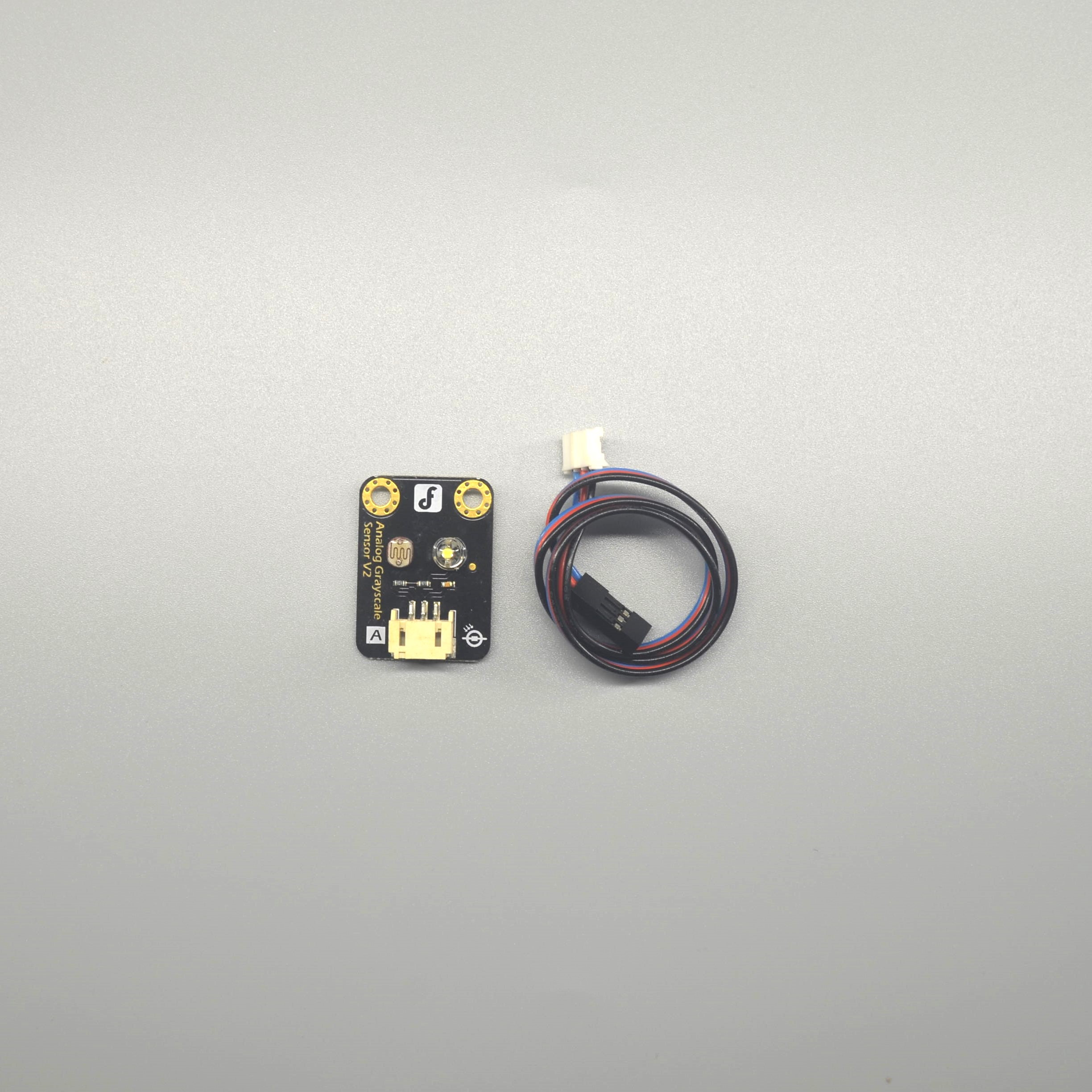

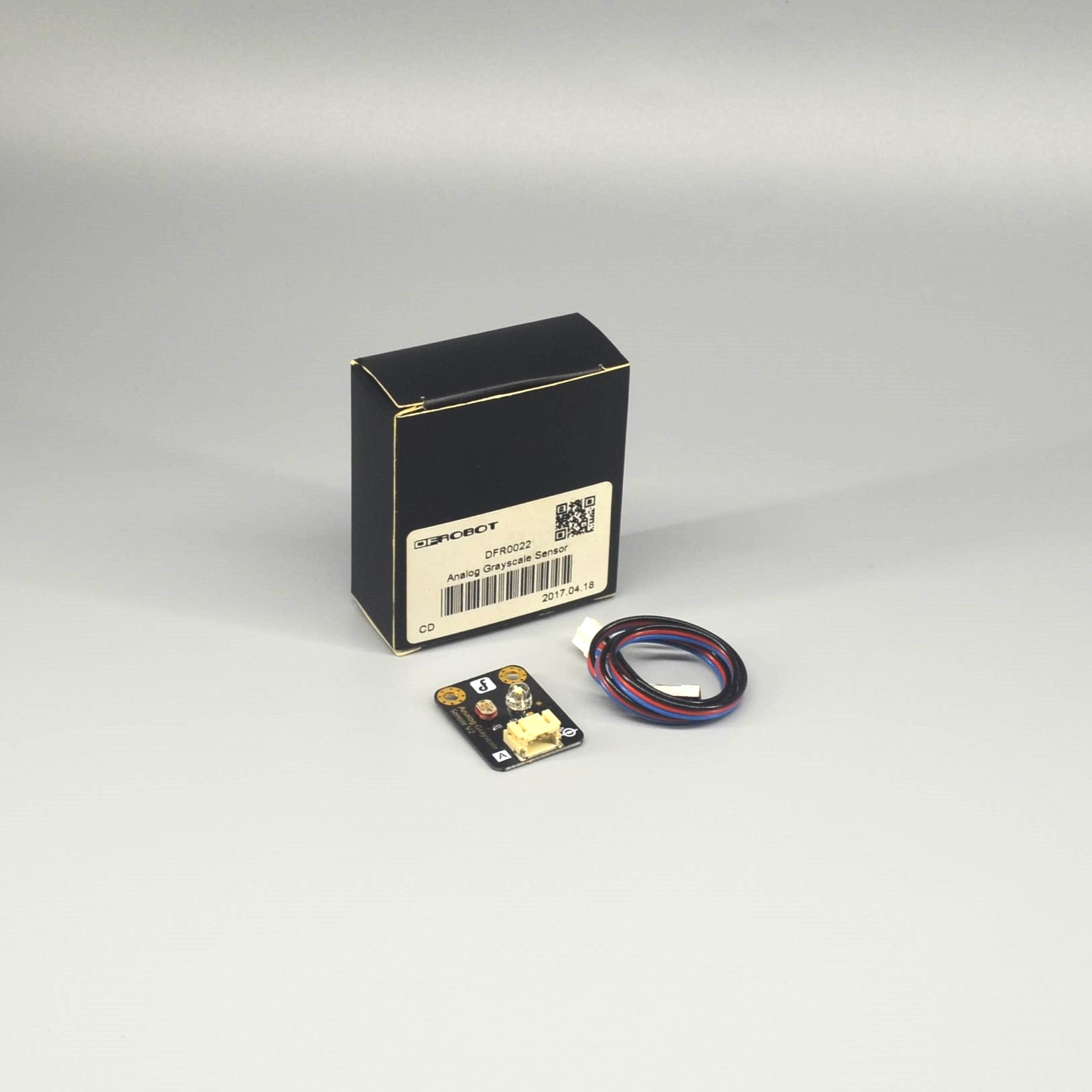

Package List
Analog Grayscale Sensor V2 x1
Analog cable x1
