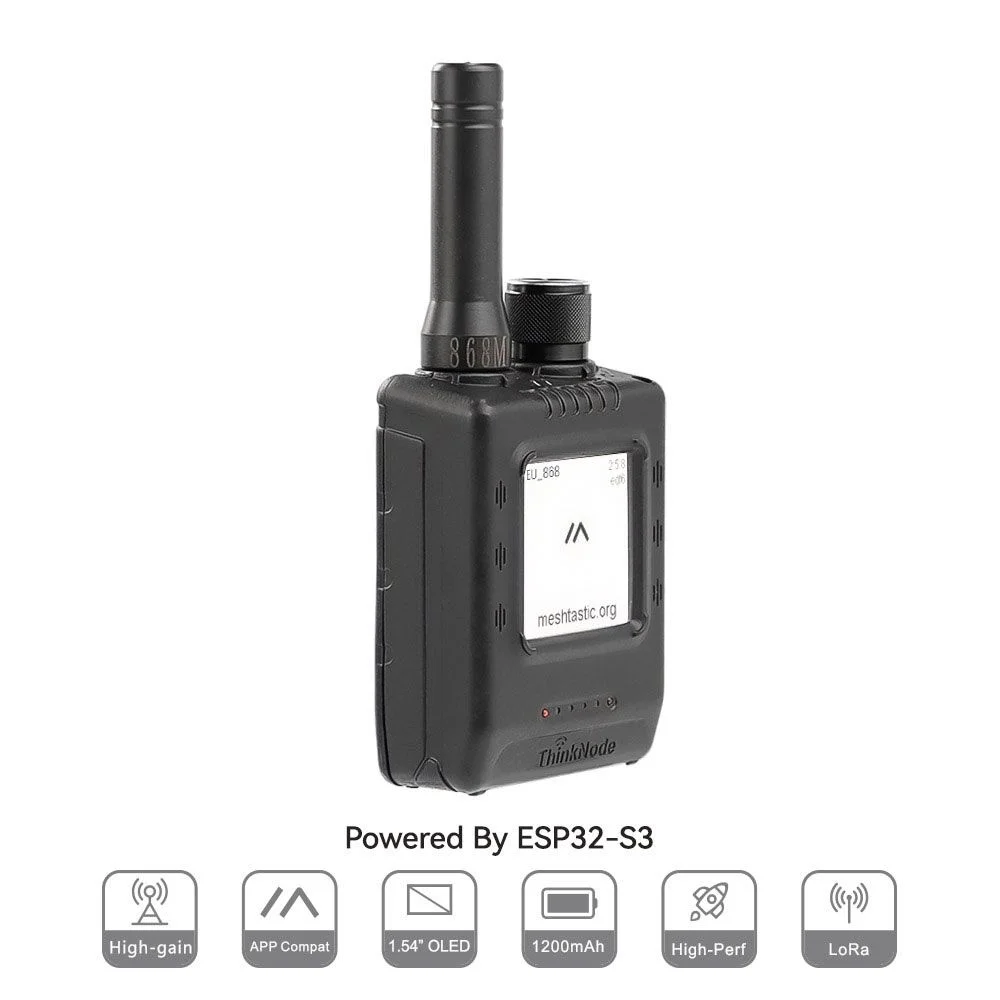

ThinkNode M5 Walkie-Talkie Pro -LoRa Signal Transceiver |ESP32-S3 | 1.54” Screen | GPS Function-868 MHz
ILM14505D
₱3153.00
Out of stock
ThinkNode M5 Walkie-Talkie Pro: High-performance LoRa communication device
Elecrow ThinkNode-M5 Walkie-Talkie Pro is a high-performance multi-function device that integrates advanced wireless communication technology and various sensors.
The device is powered by the ESP32-S3 processor and supports Bluetooth connectivity. Users can easily configure and monitor it via their mobile phones.
Combined with the SX1262 wireless chip, the device can efficiently send and receive LoRa signals.
The ThinkNode-M5 features a 1.54-inch EPD (Electronic Paper Display) that allows users to view data and device status in real-time. It is equipped with a 1200mAh rechargeable battery and can operate outdoors for an extended period.
The built-in GPS module of M5 ensures accurate positioning in any environment and can be used as an independent communication tool in the absence of network coverage or in emergencies to protect the safety of users.
The external LoRa antenna supports different frequency selection. The device adopts an integrated closed shell design, which is compact, easy to carry, and durable.
With a highly integrated design concept, ThinkNode-M5 integrates advanced communication technologies such as LoRa and GPS to achieve efficient connection and data exchange between devices. Whether in remote areas where cellular networks are not covered or in emergency situations, M5 can serve as a reliable independent communication tool.
Low power consumption and long battery life

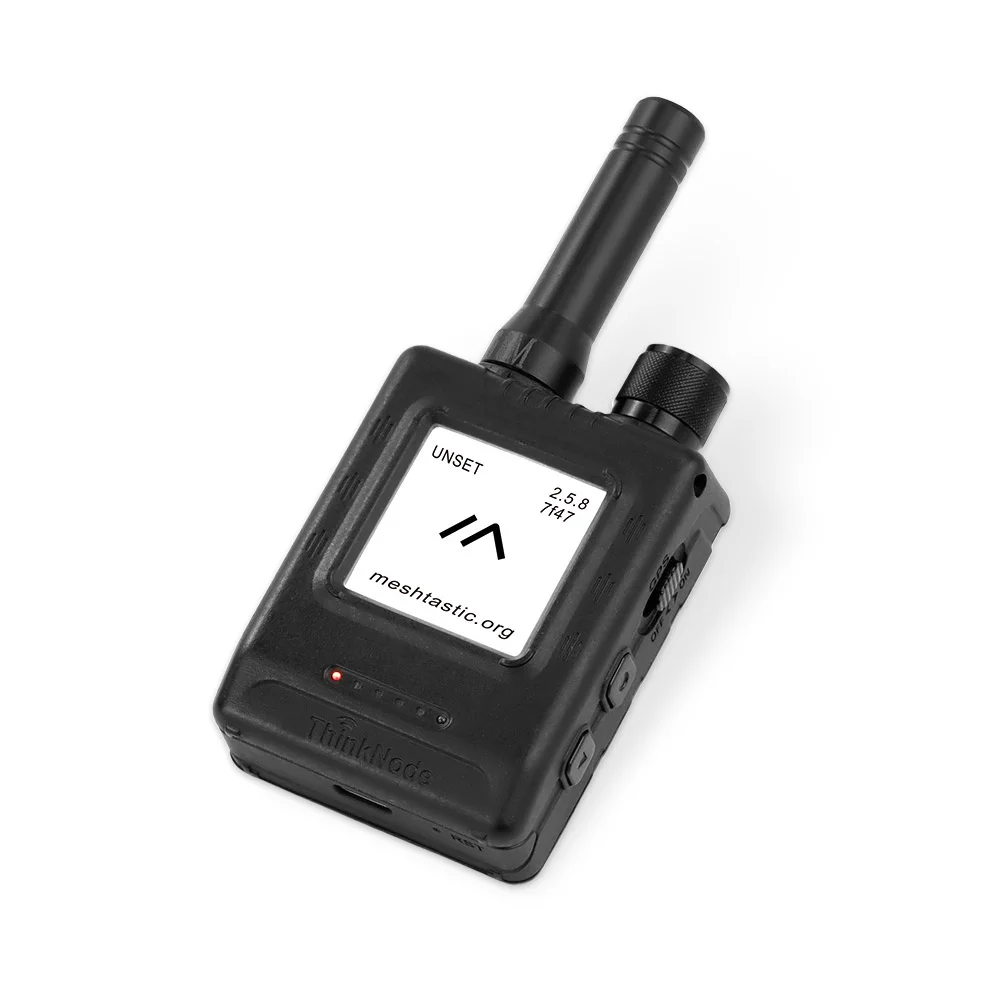

With a built-in 1.54" EPD display
ThinkNode M5 with GPS Positioning Function
Different applications of ThinkNode M5
Hardware Overview of ThinkNode M5
Feature
Combined with the SX1262 Chip, it can realize efficient and stable transmission and reception of LoRa signals.
Built-in GPS module, providing accurate positioning functions including GPS, GLONASS, BeiDou, QZSS;
RTC clock can keep accurate time records even when power is off, and can realize faster hot start of the device, support interruption/wake-up.
1.54-inch EPD display screen for real-time viewing of data and device status;
Built-in 1200mAh lithium battery, it can work continuously.
Low power consumption, the maximum working current is about 340mA (CPU+LoRa transceiver), and the low power consumption is about 34uA.
The closed shell with integrated design is compact and portable, easy to carry and durable.
External LoRa antenna ensures the stability and efficiency of signal transmission.Target Group
Outdoor enthusiasts, emergency responders, rural and remote residents, technology enthusiasts and developers, logistics and transportation companies, community organizations;
Application
Outdoor adventure/Emergency communications/Community networking/Technology enthusiasts/Fleet management
Specification
Main Processor（ESP32-S3） | |
CPU/SoC | High-performance Xtensa 32-bit LX7 dual-core processor, clocked at up to 240MHz |
System Memory | 512KB SRAM、8M PSRAM |
Storage | 4M Flash, 384KB ROM |
EPD(Electronic Paper Display) | |
Size | 1.54 inch-EPD(monochrome ink screen) |
Display Materials | E-lnk（Electronic Ink） |
Resolution | 200*200 or more |
Driver Chip | SSD1681 (Via SPI or I2C interface) |
Global Fresh Time | 2s |
Wireless Communication | |
Bluetooth | Bluetooth Low Energy and Bluetooth 5.4 (phone configuration) |
LoRa | SX1262 LoRa Transceiver、US 915MHz / EU 868MHz（External antenna） |
Hardware | |
Interface | Type-C Interface、RP-SMA Interface |
Function | GPS Location(GPS, GLONASS, BeiDou, QZSS)、EPD Display、RTC、USB2.0、 PMU power management (built-in 1200mAh lithium battery), buzzer, etc. |
Button | Knob Switch, Function Button, Page Turn Button, GPS Switch, Reset Button |
LED Indicator | Power supply, GPS/LoRa indication |
Other | |
Power Input | 5V/1A, supports USB or lithium battery power supply |
Power consumption | The maximum working current is about 340mA (CPU+LoRa transceiver), and the low power consumption is about 34uA |
Operating Temperature | -10~50°C |
Storage Temperature | -20~60 °C |
Relative humidity | 10%-95%, @ 40°C (non-condensing) |
Size | 82*51.6*26.3m |
Enclosure | ABS Plastic |
Net weight | 58g (Without case); 81g (With case) |
What's the difference between the ThinkNode M1 vs M2 vs M5?
Why Choose us?
As an industry-leading equipment manufacturer, we rely on our independently developed core technology and the production strength of our factory to ensure that every product has precise quality control from design to manufacturing, and is both reliable and innovative. We provide online customer service support to answer your questions at any time, making the whole process worry-free. At the same time, we provide customized solutions to accurately meet your personalized needs. Choosing Elecrow means choosing safety, efficiency and professionalism.
Please rest assured to buying, we have a 1-year warranty and 30-day return policy.
Package List
1x ThinkNode M5 LoRaWAN Gateway
1x USB-A to Type-C Cable
1x Lora Rubber Stick Antenna
1x User Manual
